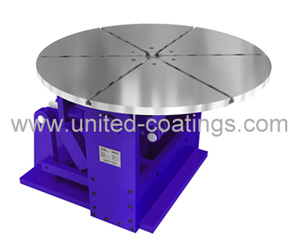

UCT’s UT Series turntables have been designed specifically for thermal spray application. Loading ranges from 300 kg to 50 tons, its heavy-duty construction is designed to withstand the harsh environment of the thermal spray process and its robust nature ensures that it can handle the most demanding of applications.
The UT Series also offers a high degree of accuracy and reliability, thanks to its robust servo motor and precision planetary gear system. Additionally, its compact design and low weight make it easy to install and transport.
The UT Series is available in a variety of configurations, including single-axis and dual-axis models, as well as manual and multi-spindle automated versions. The UT Series also includes a control panel and a user-friendly interface for easy operation
The standard UT turntables for various needs of customers are shown in the table below:
UCT’s UT Series Turntables
Model | Load （Kg） | Rotate Speed （RPM） | Tilting | Plate Dia. （mm） | Remarks |
UT-300 | 300 | 0-300 | X | 600-1,200 | |
UT-300R | 300 | 0-300 | √ | 600-1,200 | 90kg load at 60 degree tilt |
UT-500 | 500 | 0-300 | X | 600-1,200 | |
UT-500R | 500 | 0-300 | √ | 600-1,200 | 150kg load at 90 degree tilt |
UT-1000 | 1,000 | 0-90 | X | 1,500 | |
UT-10T | 10,000 | 0-15 | X | 2,500 |
The features, benefits and options of UCT’s turntable:
The design of UCT’s turntables are based on its years of experience in spray applications.
Rigid design with low maintenance for thermal spray processes.
Adopting servo motor drive to make it more reliable, precise and safe.
With arrangement for interfacing through robot control.
Tilt angle from 0-90 degree through user interface touch screen with real time display.
Optional positioning pins, chucks and T grooves can be added to the faceplate.
E-stop safety interface to robot and core thermal spray equipment.
As an option, the rotation and tilt can be interfaced as axis of a robot.
Security interlock to prevent possible motion of mechanical over tilting
Soft brake control software for controlled braking of rotation during an emergency stop.
For more information, please call us +86-10-52961188 ext. 887, toll free phone +86-400-818-9933, US cell +1 631 660 6883, or email to info@united-coatings.com.
